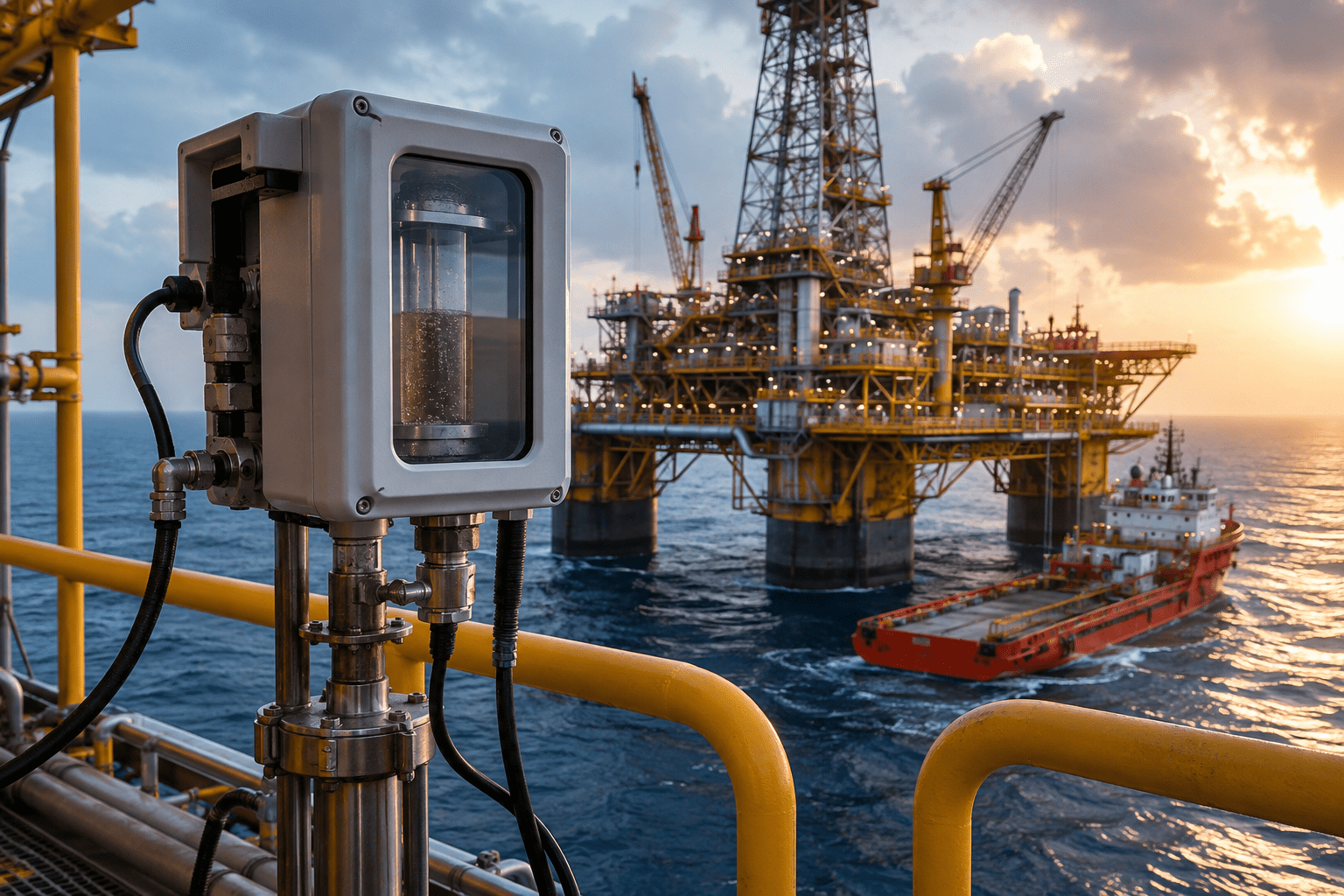

Continuous oil-in-water monitoring on an FPSO does more than trigger an alarm when oil concentration is too high. The data produced by the monitoring system is the foundation of the FPSO’s environmental reporting programme the continuous record that the operator uses to demonstrate compliance with field permit conditions to national regulatory authorities, to complete annual environmental submissions and to respond to regulatory inspection.
For Environmental Engineers, Regulatory Engineers and FPSO operators, understanding how monitoring data flows from the analyser into regulatory reports, permit submissions and operator environmental records is essential for managing compliance obligations effectively. For a full explanation of the consequences when monitoring data is missing or incomplete during a regulatory inspection, see What Happens If FPSO Produced Water Discharge Fails an Inspection?.
| Key thing to remember The oil-in-water monitor does not just measure it generates the compliance record. Every reading, every alarm event and every discharge operation must be captured in the data logging system with a timestamp. Without a complete, uninterrupted data record, the operator cannot demonstrate that produced water discharge was within the permitted limit at all times regardless of whether it actually was. |
Why Is Environmental Reporting Important for FPSO Produced Water Discharge?
FPSO produced water discharge is not self-certifying. The operator cannot simply discharge treated water and assume compliance they must be able to demonstrate compliance to the regulatory authority through a documented record of the monitoring data captured during every discharge event.
Environmental reporting serves several distinct purposes for FPSO operators:
- Regulatory compliance demonstration proving to the national environmental authority that produced water discharge was within the field permit limits during each reporting period
- Permit renewal evidence historical discharge records support permit renewal applications and demonstrate the operator’s environmental performance record
- Incident response documentation in the event of a discharge exceedance, monitoring records support the investigation and demonstrate the operator’s response
- Internal HSE performance tracking monitoring data feeds into the operator’s own environmental key performance indicators and sustainability reporting
- Stakeholder and investor reporting environmental performance data from offshore operations increasingly forms part of operator ESG and sustainability disclosures
All of these reporting functions depend on the same source the continuous data record produced by the oil-in-water monitoring system. If the monitoring data is missing, incomplete or inaccurate, the entire reporting chain is compromised.
What Data Does the Oil-in-Water Monitor Capture for Environmental Reporting?
The monitoring system must capture several categories of data to support the full range of environmental reporting requirements. The table below sets out the key data types, what each captures and why it matters for reporting.
| Data type | What it captures | Why it matters for reporting |
| Oil concentration readings | Continuous or interval readings from the oil-in-water analyser in parts per million | Demonstrates that discharge was within the permitted limit at all times |
| Timestamps | Date and time stamp for every reading, alarm event and discharge operation | Allows regulators to correlate discharge records with vessel position and operational logs |
| Alarm events | Record of every high-oil alarm activation, the reading that triggered it and the time of activation | Demonstrates that the monitoring system responded correctly to exceedances |
| Operator response records | Actions taken following each alarm activation valve closure, discharge suspension, investigation | Demonstrates that the crew responded correctly and did not continue discharge in breach |
| Discharge volumes or flow rates | Volume or flow rate of produced water discharged during each reporting period, where required by permit | Enables calculation of total oil discharged and supports permit reporting requirements |
| Calibration records | Date of last calibration, crude oil reference used and calibration result | Demonstrates that the monitoring readings were accurate during the reporting period |
| Downtime and maintenance events | Periods when the monitor was offline for maintenance, calibration or repair | Demonstrates continuity of monitoring and explains any gaps in the continuous data record |
The completeness of this dataset is critical. A monitoring record with gaps caused by monitor downtime, data logging failures or calibration events that were not documented creates compliance uncertainty. Regulatory authorities reviewing an incomplete record may treat the gaps as evidence of unmonitored discharge, even if the system was functioning correctly for most of the reporting period.
What Types of Environmental Reports Does This Data Support?
The format and frequency of environmental reporting required for FPSO produced water discharge varies significantly by jurisdiction. For a full explanation of how discharge limits and monitoring requirements differ between operating locations, see Why Do Produced Water Discharge Limits Vary by Country?.
The table below summarises the main report types that rely on produced water monitoring data, the jurisdictions they apply in and what they require.
| Report type | Jurisdiction | What it requires |
| OSPAR annual reporting | North Sea OSPAR Convention jurisdictions | Annual submission of produced water discharge volumes and oil-in-water concentrations to national regulatory authority; data reported as monthly averages |
| National permit reporting | All jurisdictions with field permit conditions | Periodic submission monthly, quarterly or annual depending on permit of discharge data in the format specified by the national regulatory authority |
| Oil Record Book (Part I) | MARPOL-governed below-the-waterline discharge streams | Continuous record of bilge water and OWS discharge operations in the standardised IMO format; available for inspection by port state control |
| Operator HSE reporting | All FPSO operations | Internal environmental performance reporting against operator KPIs; may include produced water discharge volumes, oil content exceedances and monitoring system availability |
| Incident reporting | All jurisdictions | Mandatory notification to the regulatory authority where a discharge exceedance or monitoring failure occurs; timescales and format specified by national legislation |
In practice, most FPSO operations involve at least two of these reporting streams simultaneously national permit reporting and operator HSE reporting and often more, particularly in OSPAR jurisdictions or where the FPSO operates under MARPOL for below-the-waterline discharge streams.
How Does Monitoring Data Flow From the Analyser Into the Compliance Record?
The path from the oil-in-water analyser to the regulatory report involves several steps, each of which must be correctly configured and maintained to preserve the integrity of the compliance record:
Step 1: Continuous measurement and analogue output
The oil-in-water analyser measures oil concentration continuously and transmits the reading to the DCS or ICSS via a 4 to 20mA analogue output. The engineering units ppm must be correctly configured in the control system so that the reading is displayed and recorded accurately.
Step 2: Data logging in the control system
The DCS or ICSS logs the oil concentration reading at regular intervals typically every minute or every few minutes along with a timestamp. Alarm events are logged separately with the precise time of activation, the concentration reading that triggered the alarm and the time of reset.
Step 3: Discharge event recording
Each discharge event start time, stop time, duration and any alarm activations during the event is recorded in the data log. Where the permit requires discharge volume reporting, the flow rate or volume is also recorded.
Step 4: Data export and report generation
At the end of each reporting period daily, monthly, quarterly or annually depending on the permit requirements the monitoring data is exported from the control system and formatted into the report required by the regulatory authority. This may be a simple tabular summary of average concentrations or a detailed record of every discharge event.
Step 5: Regulatory submission
The completed report is submitted to the national regulatory authority in the required format and within the required timescale. In some jurisdictions, submission is online through the regulatory authority’s reporting portal; in others, it is submitted by email or in hard copy.
What Are the Risks of an Incomplete or Inaccurate Monitoring Record?
An incomplete or inaccurate monitoring record creates several risks for the FPSO operator even where the produced water discharge was actually within the permitted limit at all times:
- Regulatory enforcement a regulator reviewing an incomplete record may treat unexplained gaps as evidence of unmonitored discharge and initiate enforcement action, including fines or permit suspension
- Permit non-renewal a poor environmental performance record, including periods of unmonitored discharge, can affect the operator’s ability to renew the field permit on favourable terms
- Audit failure operator HSE audits and investor due diligence reviews that identify gaps in the monitoring record create reputational and commercial risk
- Difficulty defending against a regulatory investigation without a complete monitoring record, the operator cannot demonstrate that a specific discharge event was within the permitted limit
| A complete record is as important as compliant discharge An FPSO that discharges produced water within the permitted limit but does not maintain a complete monitoring record is in a much weaker position during a regulatory inspection than one that can produce a comprehensive, uninterrupted data record covering every discharge event. Regulators cannot verify compliance they cannot see. The monitoring record is the operator’s primary evidence of compliant operation. |
How Does Calibration Affect the Reliability of the Environmental Record?
The accuracy of the monitoring data and therefore the reliability of the environmental report depends directly on the calibration status of the oil-in-water analyser. A monitor that has drifted from its calibrated baseline produces readings that do not accurately reflect the actual oil concentration in the produced water. If these readings are used to support a regulatory report, the report may be inaccurate even if it appears complete. For a full explanation of how calibration works and when recalibration is required, see How Do You Calibrate a Produced Water Analyser?.
The calibration record is also a required element of the compliance documentation package. A regulatory inspector reviewing produced water discharge records will expect to see a current calibration certificate for the analyser that produced the data confirming that the readings in the report were produced by a calibrated instrument.
Best practice for maintaining calibration integrity throughout the reporting period includes:
- Maintaining a calibration log with the date, method, crude oil reference and result for every calibration event
- Carrying out regular grab sample correlation to detect drift between formal calibration events
- Documenting any calibration adjustments made during the reporting period, with the reason for the adjustment
- Retaining calibration certificates onboard for the duration of the reporting period and beyond
What Role Does the OCD Xtra Play in FPSO Environmental Reporting?
The OCD Xtra is designed for FPSO produced water monitoring applications where accurate, defensible measurement across a range of crude oil types is required. Its ability to be factory calibrated on up to six oil types and adjusted onsite against laboratory analysis means that the monitoring data it produces reflects the actual oil concentration in the produced water not an approximated reading based on a calibration established for a different crude.
For environmental reporting purposes, this calibration accuracy is important. A report based on data from a monitor calibrated against the wrong crude oil type may systematically over or understate the oil concentration in the produced water creating both a compliance risk and a data integrity problem for the regulatory submission.
Full details of the Rivertrace produced water monitoring portfolio and the advisory support available for FPSO environmental compliance are on the Produced Water Discharge Monitoring for FPSOs page.
Frequently Asked Questions
What environmental reports does an FPSO produced water monitoring system support?
The monitoring data supports several report types including national permit periodic reporting (monthly, quarterly or annual depending on the permit), OSPAR annual produced water reporting in North Sea jurisdictions, Oil Record Book entries for MARPOL-governed below-the-waterline discharge streams, operator HSE performance reporting and incident notification where a discharge exceedance occurs.
What data must the oil-in-water monitoring system capture for environmental reporting?
The monitoring system must capture continuous or interval oil concentration readings with timestamps, alarm activation and reset records with the triggering concentration, operator response records, discharge volumes or flow rates where required by the permit, calibration records and any periods of monitor downtime. All data must be retained for the period specified by the applicable regulatory authority.
What happens if there are gaps in the produced water monitoring record?
Gaps in the monitoring record caused by monitor downtime, data logging failures or undocumented calibration events create compliance uncertainty. Regulatory authorities reviewing an incomplete record may treat unexplained gaps as evidence of unmonitored discharge and initiate enforcement action. Gaps must be documented with a clear explanation and, where possible, corroborating evidence such as maintenance records.
How does calibration affect the accuracy of the environmental report?
A monitor that has drifted from its calibrated baseline produces readings that do not accurately reflect actual oil concentration. If inaccurate readings are used to support a regulatory report, the report may be inaccurate even if it appears complete. Regular grab sample correlation and timely recalibration are essential for maintaining the data accuracy that underpins the environmental report.
Is the monitoring data format the same in all jurisdictions?
No. The format, frequency and content of produced water discharge reporting varies by jurisdiction and by permit conditions. OSPAR jurisdictions use a specific annual reporting format. National regulatory authorities specify their own report formats and submission timescales. The Oil Record Book format is standardised by IMO for MARPOL-governed streams. Operators must confirm the specific requirements for each jurisdiction in which the FPSO operates.
