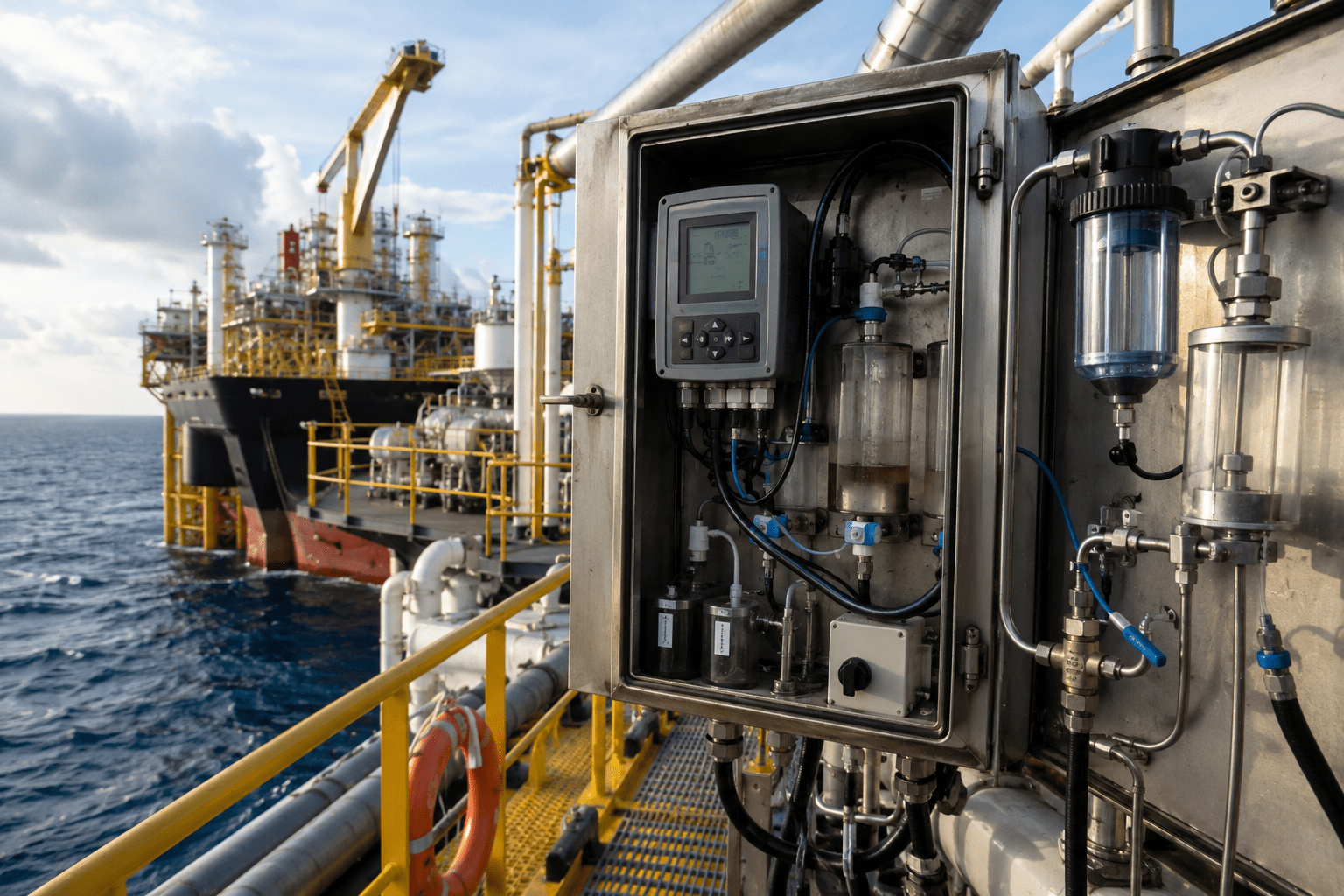

Produced water monitoring on an FPSO is not a single instrument sitting at the end of a pipe. It is a complete system from the point where the sample is taken from the produced water stream, through sample conditioning, continuous measurement, alarm management and discharge control, to the compliance record that the operator must be able to produce during a regulatory inspection.
Understanding how the full monitoring system works is important for EPC instrumentation engineers specifying the system at FEED stage, commissioning teams verifying it before first oil, and operations teams responsible for maintaining compliance throughout the asset’s operating life. For a plain-English explanation of what produced water is and how it differs from bilge water, see What Is Produced Water and Why Is It Different From Bilge Water?.
| Key thing to remember The oil-in-water analyser is the most visible component of the produced water monitoring system but it is not the whole system. The analyser only performs correctly if the sample conditioning system is working correctly, the calibration is current, the control system integration is verified, and the discharge records are being captured in the right format. All components must work together. |
What Does a Produced Water Monitoring System on an FPSO Consist Of?
A produced water monitoring system on an FPSO consists of several interconnected components. Each one plays a specific role and a failure in any component can compromise the reliability of the compliance record, even if the analyser itself is functioning correctly.
| System component | What it does |
| Sample tap and isolation valve | Takes a representative sample of produced water from the discharge line at the treatment package outlet |
| Sample conditioning system | Reduces pressure, stabilises temperature and removes large solids before the sample reaches the analyser |
| Oil-in-water analyser | Continuously measures oil concentration in the conditioned sample and outputs a reading in parts per million |
| Alarm and signal output | Sends a high-oil alarm signal to the control room and triggers the discharge shut-off if oil concentration exceeds the limit |
| Discharge control valve | Automatically closes to stop overboard discharge when the alarm is activated; diverts the stream back to the treatment system |
| Data logging and recording system | Records oil concentration readings, alarm events, discharge volumes and timestamps for the compliance record |
| Oil Record Book / reporting system | Captures the discharge record in the format required by the applicable regulatory authority or operator standard |
The monitoring system must be designed, installed and commissioned as an integrated whole not assembled from individually selected components without considering how they interact. This is one of the reasons why early advisory input from Rivertrace at the FEED or specification stage significantly reduces commissioning risk.
Where Is the Monitoring Point Located on an FPSO?
The oil-in-water monitoring point must be located at the outlet of the produced water treatment package after all treatment stages have been completed and before the produced water reaches the overboard discharge valve or the reinjection pump inlet.
This position is critical for two reasons. First, it ensures that the monitor is measuring the quality of the water that will actually be discharged or reinjected, not the quality at an earlier stage of the treatment process. Second, it allows the automatic discharge shut-off to act on the most current measurement before water reaches the sea.
Installing the monitoring point before the final treatment stage for example, between the hydrocyclone and the flotation unit means the monitor is measuring water that has not received full treatment. Readings taken at this point cannot be used as a compliance record for discharge.
How Does Sample Conditioning Work?
Produced water at the treatment package outlet is typically at elevated pressure and temperature relative to the operating range of the oil-in-water analyser. Before the sample reaches the measurement cell, it must be conditioned to bring it within the analyser’s specified operating range.
Sample conditioning typically involves:
- Pressure reduction a back-pressure regulator or pressure control valve reduces the sample pressure to the level required by the analyser
- Temperature stabilisation the sample may need to be cooled or maintained within a specified temperature range for accurate measurement
- Solids filtration a strainer or cartridge filter removes large solids that could foul the measurement cell or damage the analyser
- Flow control the sample flow rate is set within the analyser’s specified range using a flow control valve or rotameter
Sample conditioning is frequently underestimated at the specification stage and is one of the most common causes of analyser performance problems during commissioning. The sample conditioning system must be defined alongside the analyser not specified separately or left as a late-stage decision.
| Why sample conditioning matters An analyser that receives a sample outside its specified pressure, temperature or flow range will not give accurate readings regardless of how well it has been calibrated. Many cases of unexpectedly high or erratic oil readings in service can be traced back to sample conditioning problems rather than to the analyser itself. |
How Does the Oil-in-Water Analyser Measure Oil Concentration?
Different oil-in-water analysers use different measurement technologies. The most widely used technologies in FPSO produced water monitoring are optical methods typically light scattering, ultraviolet fluorescence or optical microscopy.
Light scattering
Light scattering monitors pass a beam of light through the produced water sample and measure the amount of light scattered by particles in the water. The scattered light signal is correlated to oil concentration using a calibration curve established for the specific crude oil type. Light scattering monitors are widely used but can be susceptible to false readings from gas bubbles and solids, which scatter light in the same way as oil droplets.
Optical microscopy
Optical microscopy monitors such as the SMART PFM 107 use a camera and image analysis to capture and classify individual particles in the water stream. By measuring the size, shape and optical characteristics of each particle, the monitor can distinguish between oil droplets, gas bubbles and solid particles. This makes optical microscopy monitors significantly more robust against gas and solids interference compared to simple light scattering monitors which is why they are particularly well suited to the complex and variable conditions of FPSO produced water streams.
Ultraviolet fluorescence
UV fluorescence monitors expose the produced water sample to ultraviolet light. Hydrocarbon compounds naturally fluoresce under UV light, producing a signal that can be correlated to oil concentration. UV fluorescence is effective at detecting dissolved and dispersed aromatic hydrocarbons but is less sensitive to non-aromatic oils and can be affected by naturally fluorescent compounds in the produced water.
How Is the Alarm and Discharge Shut-Off System Integrated?
The oil-in-water analyser must be connected to the FPSO’s control system so that a high-oil alarm can be communicated to the control room and the discharge shut-off valve can be activated automatically when the oil concentration exceeds the permitted limit.
The integration typically involves:
- A 4–20mA analogue output from the analyser to the DCS or ICSS, transmitting the oil concentration reading in real time
- A discrete alarm output that activates when oil concentration exceeds a set point typically the permit discharge limit or a pre-alarm at a lower threshold
- A discrete output that directly controls the overboard discharge valve closing it automatically when the high-oil alarm activates
- An optional divert signal that opens a recirculation valve to return the produced water to the treatment system when discharge is stopped
Control system integration must be verified during pre-commissioning loop checks and confirmed during the Site Acceptance Test (SAT). A monitoring system where the analyser is not correctly connected to the discharge shut-off controls cannot provide automatic discharge protection leaving the operator reliant on manual intervention to prevent a compliance breach.
| Integration must be tested, not assumed It is not sufficient to confirm that the analyser is wired to the control system. The complete loop from a high oil reading at the analyser, through the alarm signal, to the closure of the discharge shut-off valve must be functionally tested before the FPSO enters service. This is a standard requirement of the SAT and should be documented in the commissioning handover package. |
How Is Produced Water Discharge Data Recorded for Compliance?
The compliance record for produced water discharge must demonstrate to the satisfaction of the applicable regulatory authority that the discharge was within the permitted limit at all times. The monitoring system must therefore capture and retain a complete record of:
- Oil concentration readings continuous or at a defined recording interval
- Timestamps for all readings, alarm events and discharge operations
- Alarm activations and the corresponding operator response
- Discharge volumes or flow rates where required by the permit
- Calibration dates and reference information
The format of the compliance record depends on the applicable regulatory requirement. For MARPOL-governed discharge streams, the Oil Record Book format is prescribed by IMO. For permit-governed produced water discharge, the format may be specified by the national regulatory authority or the field permit conditions.
For a detailed explanation of what inspectors check when reviewing a produced water discharge compliance record, see What Happens If FPSO Produced Water Discharge Fails an Inspection?.
Which Rivertrace Products Are Used for Produced Water Monitoring on FPSOs?
Rivertrace offers two oil-in-water monitoring products specifically suited to FPSO produced water applications. Both are described in full on the Produced Water Discharge Monitoring for FPSOs explainer page.
| Product | Application | Key capability |
| SMART PFM 107 | MEPC.107(49)-approved produced water discharge monitoring, oily water separator discharge, drill rig slop tanks | Optical microscopy differentiates oil, gas bubbles and solids in the 1–500 micron range; reduces false readings from gas and solids interference |
| OCD Xtra | Produced water discharge where crude oil type varies or where a broader measurement range is required | Measures oil across 0–200ppm; factory calibrated on up to six oil types; adjustable onsite against laboratory analysis |
What Are the Key Commissioning Requirements for a Produced Water Monitoring System?
Before a produced water monitoring system can be used to support compliance discharge operations, it must be commissioned and verified. Key commissioning requirements include:
- Factory Acceptance Test (FAT) verifying analyser performance against specification before shipment to the FPSO
- Sample conditioning verification confirming that pressure, temperature, flow and filtration at the sample point are within the analyser’s operating range
- Loop check verifying all electrical connections between the analyser, the DCS/ICSS and the discharge control valve
- Functional test of alarm and shut-off confirming that a simulated high-oil signal results in alarm activation and discharge valve closure
- Calibration verification confirming that the analyser reading is accurate against a reference sample of the specific crude oil type
- Site Acceptance Test (SAT) full system test in the installed configuration before handover to operations
- Operator training confirming that operating crew are familiar with alarm response, manual override procedures, routine maintenance and calibration schedules
Frequently Asked Questions
What is the difference between a produced water monitor and a bilge water monitor?
A bilge water monitor or 15ppm bilge alarm is designed for oily water separator discharge from a vessel machinery space and is governed by MARPOL Annex I and MEPC.107(49). A produced water monitor is designed for the more complex and variable conditions of FPSO topsides produced water, which may contain gas, solids and production chemicals that cause inaccurate readings in a standard bilge monitor. The regulatory basis for produced water monitoring is typically the field permit rather than MARPOL.
Where is the oil-in-water monitor installed in the produced water system?
The oil-in-water monitor is installed at the outlet of the produced water treatment package after all treatment stages are complete and before the overboard discharge valve or the reinjection pump inlet. This ensures the monitor is measuring the quality of the water that will actually be discharged or reinjected, and that the discharge shut-off can act on the most current measurement.
Why is sample conditioning important for produced water monitoring?
Produced water at the treatment package outlet is typically at elevated pressure and temperature relative to the analyser’s operating range. Sample conditioning reduces pressure, stabilises temperature, removes large solids and controls flow rate before the sample reaches the measurement cell. Without correct sample conditioning, the analyser will not give accurate readings regardless of how well it has been calibrated.
How does the monitoring system automatically stop discharge if oil levels are too high?
The oil-in-water analyser sends a continuous oil concentration reading to the DCS or ICSS via a 4–20mA analogue output. When oil concentration exceeds the alarm set point, a discrete output from the analyser or the control system logic acting on the analogue signal closes the overboard discharge valve and activates the control room alarm. This must be functionally tested during commissioning to confirm the complete loop operates correctly.
What records must be kept for produced water discharge compliance?
The compliance record must include continuous or interval oil concentration readings, timestamps for all readings and alarm events, alarm activations and operator responses, and calibration dates and references. The required format depends on the applicable regulatory authority; MARPOL-governed streams use the Oil Record Book format; permit-governed produced water discharge uses the format specified by the national regulator or field permit.
