In offshore oil and gas production, produced water is an unavoidable by-product of extracting hydrocarbons from the reservoir. On a Floating Production Storage and Offloading vessel, managing that water removing oil, solids and chemicals before discharge or reinjection is both a process engineering challenge and a regulatory obligation.
The system that handles this is called the produced water treatment package. For EPC process engineers and instrumentation teams, understanding how the package works and where oil-in-water monitoring fits within it is essential for correct equipment specification and compliance assurance.
This article explains what a produced water treatment package is, what each stage does, and why the oil-in-water analyser at the end of the treatment train is a critical compliance instrument, not an optional add-on. For a broader explanation of what produced water is and how it differs from bilge water, see What Is Produced Water and Why Is It Different From Bilge Water?.
| Key thing to remember A produced water treatment package is a multi-stage process system designed to reduce oil and solids content in reservoir water to levels that satisfy the discharge permit or reinjection quality standard. The oil-in-water monitor at the end of the treatment train is the final compliance check before any discharge decision is made and without it, discharge cannot proceed. |

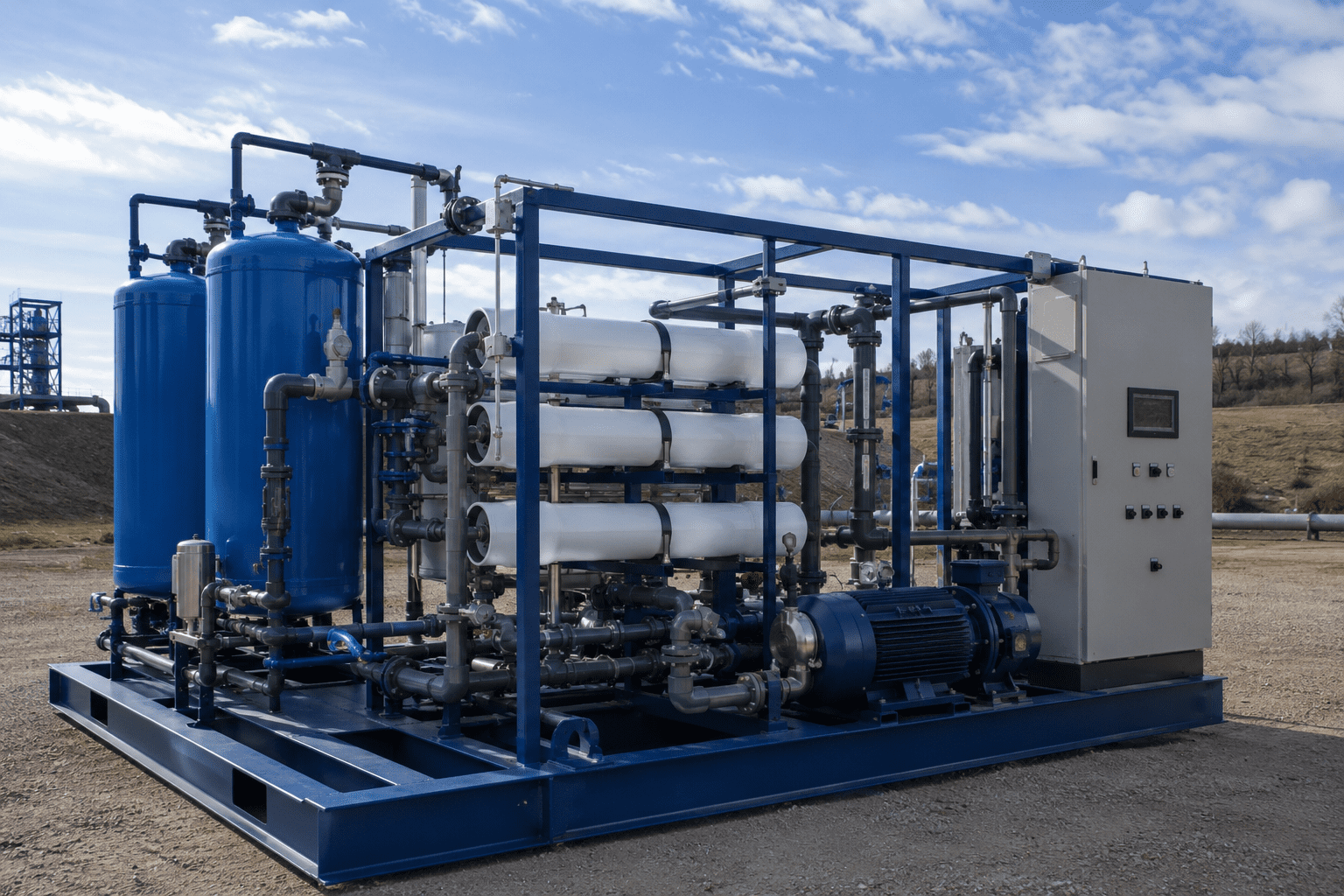

What Is a Produced Water Treatment Package?
A produced water treatment package is an integrated system of process equipment designed to separate and remove hydrocarbons, suspended solids and chemical contaminants from the water that is co-produced with oil and gas from the reservoir.
The package is a standard part of the FPSO topsides processing system. It receives the water stream from the primary oil-gas-water separation stage and treats it through a series of process steps until the water meets the quality standard required for either:
- Overboard discharge — where treated water is discharged to sea within the limits set by the field permit or applicable regulation
- Produced water reinjection (PWRI) — where treated water is injected back into the reservoir for pressure support or disposal, requiring a higher quality standard than overboard discharge
The specific configuration of the package depends on the field, the crude type, the water cut, the required discharge quality and any local environmental requirements. However, most FPSO produced water treatment packages follow a similar process sequence.
What Are the Main Components of a Produced Water Treatment Package?
A typical FPSO produced water treatment package includes several process stages in series, each designed to remove a specific type or size of contaminant. The table below sets out the main components and what each one does.
| Package component | Function | Limitation or note |
| Three-phase separator / FWKO | First-stage bulk separation of oil, gas and water by gravity | Produces a bulk water stream that still contains dispersed oil, dissolved hydrocarbons and solids |
| Hydrocyclone (de-oiling cyclone) | Removes dispersed oil droplets typically above 10–15 microns using centrifugal force | Effective for free and coarsely dispersed oil; limited against fine droplets, dissolved hydrocarbons and solids |
| Induced Gas Flotation (IGF) / Dissolved Gas Flotation (DGF) | Introduces fine gas bubbles to float residual oil droplets to the surface for skimming | Targets oil droplets in the 5–15 micron range; removes oil that hydrocyclones cannot |
| Media filtration (walnut shell, sand, or cartridge filter) | Removes remaining fine solids and residual oil from the water stream | Used where tighter discharge limits are required or where produced water is destined for reinjection |
| Chemical dosing system | Injects scale inhibitors, corrosion inhibitors, demulsifiers or biocides into the water stream | Supports treatment performance but can affect oil droplet characteristics and oil-in-water monitor readings |
| Oil-in-water analyser | Continuously measures oil concentration in the treated water before discharge or reinjection decision | Critical compliance instrument — without it, the operator cannot demonstrate that discharge is within the permitted limit |
| Discharge or reinjection header | Routes the treated water either overboard within permit limits or into the reservoir via water injection | The final destination of the treated produced water; the monitoring decision determines which route is taken |
Not every FPSO produced water treatment package includes all of these stages. The configuration is determined by the required outlet quality, the water cut, the crude type and the available space and weight allowance on the topsides all of which are defined during the FEED stage.
How Does Each Treatment Stage Work?
Stage 1: Bulk separation
The produced water stream enters the treatment package from the three-phase separator or free water knockout (FWKO) vessel. At this stage, bulk oil, gas and water have been separated by gravity — but the water stream still contains dispersed oil droplets, dissolved hydrocarbons, fine solids and production chemicals.
The bulk separation stage removes the majority of the free oil but is not designed to achieve the oil concentration levels required for overboard discharge. Further treatment is required.
Stage 2: Hydrocyclone de-oiling
The bulk water stream passes through a bank of hydrocyclones compact, high-velocity separation vessels that use centrifugal force to separate dispersed oil droplets from the water. Hydrocyclones are effective at removing oil droplets above approximately 10–15 microns and are widely used on FPSOs because they have no moving parts, require minimal maintenance and have a small footprint.
However, hydrocyclones have limitations. They are less effective against very fine oil droplets, dissolved hydrocarbons and solids and their performance can be affected by changes in flow rate, water cut and crude oil properties. In most cases, further treatment stages are required after the hydrocyclone.
Stage 3: Gas flotation
The water stream passes through a flotation unit — either an Induced Gas Flotation (IGF) unit or a Dissolved Gas Flotation (DGF) unit. Both systems introduce fine gas bubbles into the water stream. The gas bubbles attach to residual oil droplets and carry them to the surface, where they are skimmed off as a recovered oil stream.
Gas flotation is effective at removing oil droplets in the 5–15 micron range that hydrocyclones cannot capture. It is one of the most common second-stage treatment technologies on FPSO produced water systems.
Stage 4: Filtration (where required)
Where the required discharge quality is particularly tight, or where the produced water is destined for reinjection rather than overboard discharge, a filtration stage may be added after the flotation unit. Walnut shell filters, sand filters and cartridge filters are all used in produced water treatment applications.
Filtration removes fine solids that can interfere with the oil-in-water analyser downstream making it particularly important where the monitor uses optical measurement technology that is susceptible to solid particle interference.
Stage 5: Chemical dosing
Production chemicals are injected at various points in the treatment package to support process performance. Demulsifiers help break oil-water emulsions; scale inhibitors prevent mineral scaling in pipes and equipment; corrosion inhibitors protect metal surfaces; biocides control microbial growth.
Chemical dosing is necessary for treatment performance but introduces an important consideration for oil-in-water monitoring. Some production chemicals alter the physical properties of oil droplets affecting their size, surface tension and optical properties which can affect the accuracy of optical oil-in-water monitors if the monitor has not been selected and calibrated with the specific chemical environment in mind.
| Important consideration for monitor selection The chemical environment of a produced water stream including the types and concentrations of production chemicals in use must be considered when selecting and calibrating the oil-in-water monitor. A monitor calibrated without reference to the specific chemical dosing regime may give inaccurate readings in service. |
Where Does the Oil-in-Water Monitor Fit in the Treatment Package?
The oil-in-water analyser is installed at the outlet of the treatment package after the final treatment stage and before the discharge or reinjection header. It continuously measures the oil concentration in the treated water stream and provides the real-time data that determines whether discharge can proceed.
If oil concentration is within the permitted limit, discharge continues. If oil concentration exceeds the limit, the monitor triggers an alarm and when correctly integrated automatically stops discharge by closing the overboard valve or diverting the stream back into the treatment system.
This makes the oil-in-water monitor the last line of compliance defence before produced water reaches the sea. Its correct specification, installation and calibration are not optional elements of the treatment package; they are fundamental to the entire system’s ability to demonstrate regulatory compliance.
| Why the monitor position matters Installing the oil-in-water monitor before the final treatment stage — rather than after it — means the monitor is measuring water that has not yet received full treatment. This creates a risk of false alarms and inaccurate compliance records. The monitor must always be positioned at the treatment package outlet, after all treatment stages are complete. |
What Are the Key Challenges in Produced Water Treatment Monitoring?
Produced water is a more complex and variable measurement environment than conventional bilge water or process water. The oil-in-water monitor at the package outlet must be selected to handle the specific characteristics of the treated water stream, which may include:
- Residual fine oil droplets below 10 microns — below the effective separation threshold of hydrocyclones
- Gas in solution or as fine bubbles — which can cause false high readings in optical monitors not designed to discriminate between oil and gas
- Fine solids and particles — which can foul sensor surfaces and affect measurement accuracy
- Production chemicals — which can alter oil droplet properties and affect calibration validity
- Variable crude oil type — where reservoir conditions or production blending changes the optical properties of the oil in the water stream
The OCD Xtra is designed for exactly this environment. It measures oil accurately across 0–200ppm, can be factory calibrated on up to six oil types and adjusted onsite against laboratory analysis providing reliable measurement in the variable and chemically complex conditions of FPSO produced water treatment package outlets.
What Regulations Govern the Discharge from a Produced Water Treatment Package?
The regulatory standard that governs produced water discharge from an FPSO treatment package depends on the operating location, the field permit and the applicable national environmental legislation. There is no single global discharge limit for produced water equivalent to the 15ppm MARPOL bilge water standard.
Discharge limits vary by jurisdiction — some countries apply a 15ppm limit; others set limits of 25ppm, 30ppm or 40ppm. Some permits require continuous monitoring with automatic shut-off; others accept periodic grab sampling correlated against the installed analyser. The field permit defines the specific requirements that the treatment package and its monitoring system must satisfy.
For a detailed guide to the regulatory frameworks that govern FPSO produced water discharge, including the difference between MARPOL-governed and permit-governed discharge streams, see the Produced Water Discharge Monitoring for FPSOs explainer page.
What Should EPC Teams Consider When Specifying the Treatment Package Monitoring?
For EPC process engineering and instrumentation teams, the oil-in-water monitor is not a late-stage add-on to the treatment package specification. It must be defined alongside the treatment stages, because its performance requirements are directly linked to the outlet quality that the treatment package is designed to achieve.
Key considerations include:
- The required measurement range — determined by the discharge limit in the field permit
- The sample characteristics at the package outlet — oil droplet size, gas content, solids loading, chemical composition
- Sample conditioning requirements — pressure reduction, temperature stabilisation and filtration ahead of the analyser
- Hazardous-area classification of the installation location
- Control system integration — DCS/ICSS interfaces, alarm outputs and automatic discharge shut-off logic
- Calibration requirements — crude oil types, calibration interval and onsite adjustment capability
For a complete specification checklist, see Produced Water Treatment on FPSOs: A Compliance Guide for EPC Teams. Rivertrace works with EPC teams at FEED stage to define the correct monitoring approach for each treatment package outlet before procurement and before detailed engineering begins.
Frequently Asked Questions
What is a produced water treatment package?
A produced water treatment package is an integrated system of process equipment on an FPSO or offshore production facility that removes oil, solids and chemical contaminants from reservoir water before it is discharged overboard or reinjected into the formation. It typically includes hydrocyclones, gas flotation units, filtration and an oil-in-water analyser.
What treatment stages does produced water go through?
Produced water typically passes through bulk separation in the three-phase separator, hydrocyclone de-oiling, gas flotation (IGF or DGF) and, where required, media or cartridge filtration. Chemical dosing is applied at various points to support treatment performance. An oil-in-water analyser monitors the treated water at the package outlet before the discharge decision is made.
Where is the oil-in-water monitor positioned in a produced water treatment package?
The oil-in-water analyser is positioned at the outlet of the treatment package after all treatment stages are complete and before the discharge or reinjection header. This ensures that the monitor is measuring the fully treated water stream and that the compliance record reflects the actual quality of the water being discharged.
Why can’t a standard bilge monitor be used at the outlet of a produced water treatment package?
A standard 15ppm bilge monitor is designed for oily water separator discharge from a vessel machinery space — a relatively stable and less complex water stream. Produced water at the treatment package outlet may contain fine oil droplets, gas bubbles, solids and production chemicals that cause unreliable readings in a standard bilge monitor. A specialist produced water analyser is required.
What happens if the oil-in-water monitor at the treatment package outlet fails or gives inaccurate readings?
If the oil-in-water monitor is non-functional, out of calibration or giving inaccurate readings, the operator cannot demonstrate that discharge is within the permitted limit. This can result in a requirement to suspend discharge and therefore production. For a full explanation of the consequences of monitoring failure, see What Happens If FPSO Produced Water Discharge Fails an Inspection?.
