Produced water is the largest waste stream in offshore oil and gas production. On an FPSO, managing it correctly from primary separation through treatment to discharge monitoring is both a technical challenge and a regulatory obligation.
For EPC and EPCI teams, produced water treatment is not just a process engineering problem. It is a compliance problem that touches instrumentation, procurement, HSE, commissioning and operations. Getting the monitoring equipment wrong at specification stage can prevent commissioning, create regulatory exposure and delay first oil.
This guide covers the produced water treatment process on FPSOs, the regulatory frameworks that govern discharge, and what EPC teams need to know when specifying oil-in-water monitoring equipment. For a detailed explanation of how produced water differs from bilge water, see What Is Produced Water and Why Is It Different From Bilge Water?.
| Key thing to remember Produced water treatment on an FPSO involves multiple process stages and at least one oil-in-water monitoring point before discharge. The monitoring equipment must be specified to match the discharge stream, the applicable regulation and the process conditions not simply selected from a marine equipment catalogue. |
What Is Produced Water and Why Does It Need Treatment?
Produced water is water that is trapped in the reservoir alongside hydrocarbons and brought to surface with the oil and gas stream. It is an unavoidable by-product of production and in mature fields, the volume of produced water can significantly exceed the volume of hydrocarbons produced.
Before produced water can be discharged overboard or reinjected, it must be treated to remove:
- Dispersed and dissolved hydrocarbons
- Suspended solids and fine particles from the reservoir
- Production chemicals added during separation and treatment
- Naturally occurring radioactive materials (NORM) in some fields
- Dissolved salts and formation minerals
The treatment objective is to reduce oil concentration and solid content to levels that satisfy the applicable discharge permit or reinjection quality standard while maintaining continuous monitoring to verify compliance before any discharge decision is made.

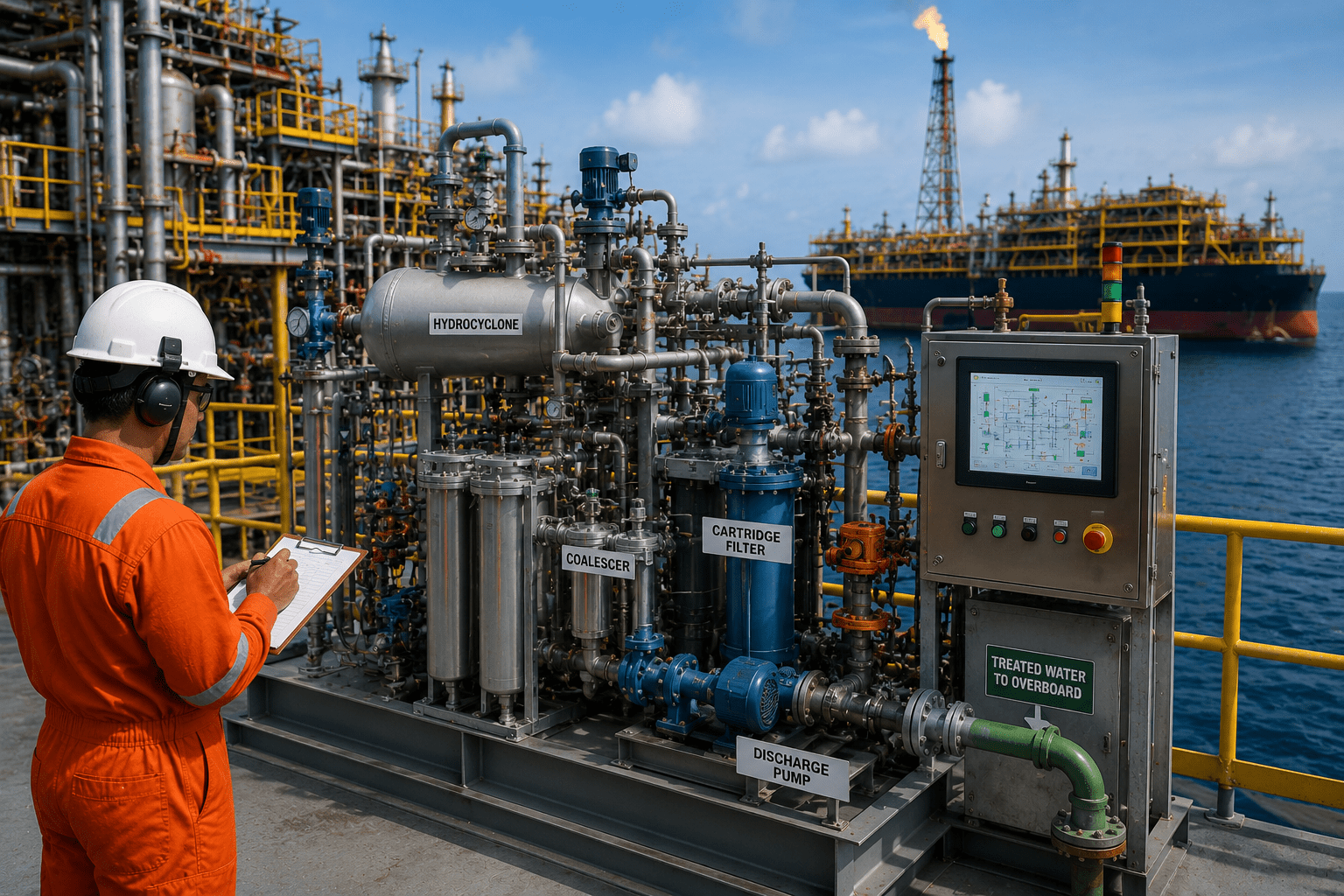

What Does the FPSO Produced Water Treatment Process Look Like?
Produced water treatment on an FPSO typically involves several process stages in series. The exact configuration depends on the field, the crude type, the water cut and the required discharge quality.
| Stage | Process step | Equipment | What it does |
| 1 | Bulk separation | Three-phase separator or free water knockout (FWKO) | Separates oil, gas and water by gravity; produced water still contains dissolved and dispersed hydrocarbons |
| 2 | Hydrocyclone | Hydrocyclone or de-oiling cyclone | Removes dispersed oil droplets above approximately 10–15 microns; effective for free oil but limited against dissolved hydrocarbons and fine droplets |
| 3 | Flotation | Induced Gas Flotation (IGF) or Dissolved Gas Flotation (DGF) | Introduces gas bubbles to float remaining oil to the surface; targets oil droplets in the 5–15 micron range |
| 4 | Filtration (optional) | Walnut shell filter, sand filter or media filter | Removes remaining solids and fine oil; used where tighter discharge limits or produced water reinjection quality is required |
| 5 | Oil-in-water monitoring | Oil-in-water analyser | Measures oil concentration continuously before discharge decision; triggers alarm or process intervention if limit is exceeded |
| 6 | Discharge or reinjection | Overboard line or water injection system | Produced water discharged overboard within permit limits, or reinjected into the reservoir for pressure support or disposal |
The oil-in-water analyser is not an optional add-on at the end of the treatment train. It is a critical compliance instrument. Without a functioning, calibrated and properly integrated monitor, the FPSO cannot demonstrate that discharge is within the permitted limit and the discharge cannot proceed.
What Regulations Govern FPSO Produced Water Discharge?
There is no single global regulation that governs produced water discharge from all FPSOs in all locations. The applicable framework depends on the FPSO type, the discharge stream and the operating location.
Field permits and national environmental legislation
Produced water from the FPSO’s topsides processing system is typically governed by the field permit issued by the national regulatory authority in the jurisdiction where the FPSO operates. Permit conditions set the discharge limit which may be expressed as a maximum oil concentration in ppm and the monitoring and reporting requirements.
Discharge limits vary significantly between jurisdictions. Some countries apply a 15ppm limit consistent with the MARPOL bilge water standard; others set limits of 25ppm, 30ppm or 40ppm with periodic sampling requirements. Some permits require continuous monitoring; others accept periodic grab samples correlated against the installed analyser.
MARPOL Annex I for below-the-waterline systems
Bilge water from the FPSO’s machinery space is governed by MARPOL Annex I and requires a type-approved 15ppm bilge alarm meeting MEPC.107(49). This is a separate requirement from produced water discharge and requires separate monitoring equipment.
Where the FPSO has been converted from a tanker and retains tanker-derived slop, tank washing or ballast discharge systems, ODME meeting MEPC.108(49) is also required for those streams.
| Why the regulatory distinction matters Produced water from topsides processing and bilge water from the machinery space are governed by different regulations and require different monitoring equipment. Installing a standard 15ppm bilge alarm on a produced water discharge system does not satisfy the field permit requirement and may not provide the measurement range or accuracy needed for the specific process conditions. |
What Are the Key Measurement Challenges in Produced Water Monitoring?
Specifying an oil-in-water monitor for produced water is more demanding than specifying one for bilge water, because produced water presents a more complex and variable measurement environment.
The most common measurement challenges are:
Oil droplet size and distribution
Produced water typically contains oil as fine dispersed droplets rather than free oil. Droplet size depends on the separation process, chemical dosing and crude oil properties. A monitor must be able to detect and measure fine oil droplets accurately not just free oil.
Gas interference
Gas in solution or as fine bubbles is common in produced water streams, particularly after pressure reduction through the treatment system. Gas bubbles can cause false high readings in optical oil-in-water monitors that cannot distinguish between oil droplets and gas.
Solids loading
Fine reservoir particles and scale can accumulate in the sample stream, fouling sensor surfaces and affecting measurement accuracy. Sample conditioning filtration, pressure reduction and temperature stabilisation is often required before the sample reaches the analyser.
Chemical dosing effects
Production chemicals used in the treatment process scale inhibitors, corrosion inhibitors, demulsifiers can alter the physical properties of oil droplets and affect optical measurement. The monitor must be robust to the chemical environment of the specific produced water stream.
Crude oil variability
Where crude oil type or composition changes with reservoir conditions or production blending, the monitor calibration must remain valid across the expected range. The OCD Xtra can be factory calibrated on up to six oil types and adjusted onsite against laboratory analysis addressing this variability directly.
| Specification risk A monitor that performs reliably in a stable bilge water environment may give inaccurate readings in a variable produced water stream. Selecting equipment without confirming the sample characteristics for the specific FPSO process is one of the most common and most avoidable specification errors on FPSO projects. |
Which Oil-in-Water Monitor Is Right for FPSO Produced Water?
The correct oil-in-water monitor for an FPSO produced water application depends on the discharge stream, the regulatory basis, the process conditions and the project specification. Rivertrace offers two products particularly well suited to FPSO produced water applications:
SMART PFM 107
SMART PFM 107 is an MEPC.107(49)-approved oil-in-water monitor that uses optical microscopy to differentiate oil particles, gas bubbles and solids in the 1–500 micron range. It is suitable for produced water discharge monitoring, oily water separator discharge, drill rig slop tank applications and other regulatory compliance applications. It displays oil concentration, pressure, temperature and alarm status and its ability to discriminate between oil and gas makes it particularly valuable in produced water streams where gas interference is a risk.
OCD Xtra
OCD Xtra is a produced water analyser designed for applications where measurement accuracy across a broader concentration range and calibration against multiple crude oil types is required. It measures oil accurately across 0–200ppm, can be factory calibrated on up to six oil types and adjusted onsite against laboratory analysis making it well suited to FPSO produced water applications where permit limits and crude composition vary.
EPC Compliance Checklist: Produced Water Monitoring Specification
Before specifying an oil-in-water monitor for an FPSO produced water application, EPC teams should work through the following checklist:
| Checklist item | What to confirm |
| Regulatory mapping | Confirm which regulations govern each discharge stream — MARPOL Annex I, field permit, national law or operator standard |
| Discharge limit | Confirm the oil concentration limit (ppm) or discharge rate limit required by the applicable regulation or permit |
| Monitor type | Confirm whether a 15ppm bilge alarm, specialist produced water analyser or ODME is required for each discharge point |
| Process conditions | Confirm oil type, concentration range, gas content, solids loading and chemical dosing in the water stream |
| Sample conditioning | Confirm whether pressure reduction, temperature control or filtration is required before the analyser |
| Hazardous area | Confirm ATEX or IECEx zone classification for the monitor installation location |
| Control integration | Confirm DCS/ICSS interface, alarm outputs and data logging requirements |
| Calibration philosophy | Confirm calibration interval, offshore calibration capability and lab reference requirements |
| Documentation package | Confirm that the supplier can provide type approval, ATEX cert, QA docs, FAT procedure and O&M manual |
| Lifecycle support | Confirm spares availability, service engineer access and manufacturer’s committed support period |
For a more detailed walkthrough of the specification process, see our guide: How to Specify an Oil-in-Water Monitor for FPSO Produced Water Discharge.
What Are the Commissioning and First-Oil Risks?
For EPC teams, produced water monitoring is not just a specification challenge it is a commissioning risk. The oil-in-water monitor must be installed, integrated, calibrated and validated before the FPSO can demonstrate compliance and begin discharge operations.
The most common commissioning risks related to produced water monitoring are:
- Analyser not calibrated against the specific crude oil type calibration certificates reference a different oil, which may not satisfy permit conditions
- Sample conditioning incomplete — pressure, temperature or solids levels outside the analyser’s operating range prevent reliable measurement
- Control system integration not verified — alarm outputs, DCS/ICSS interfaces and discharge shut-off logic not confirmed during pre-commissioning
- Documentation incomplete — type approval certificate, ATEX certification, FAT report or calibration evidence missing from the handover package
- Operator training not completed — crew unfamiliar with alarm response, manual override procedures and routine maintenance requirements
Rivertrace provides FAT and SAT support, commissioning assistance and calibration support to help EPC teams and FPSO operators avoid these risks and achieve first-oil readiness on schedule.
How Does Rivertrace Support EPC Teams on FPSO Projects?
Rivertrace works with EPC, EPCI and FPSO contractor teams from concept stage through to first oil and beyond. The scope of support includes:
- Stream-by-stream regulatory mapping to confirm the applicable standard for each discharge point
- Technology selection advice based on process conditions, regulatory basis and project specification
- Sample conditioning system guidance
- Hazardous-area certification confirmation
- Control system and data integration support
- Full procurement documentation package technical datasheets, type approval, ATEX certificates, QA/HSE documentation, FAT procedures and O&M manuals
- FAT, SAT and commissioning support
- Calibration support and onsite adjustment against laboratory analysis
- Long-term spares availability and service support
The earlier Rivertrace is involved in the project, the greater the opportunity to prevent specification errors, reduce procurement queries and support a smooth commissioning programme.
Frequently Asked Questions
What regulations govern produced water discharge from an FPSO?
Produced water from an FPSO’s topsides processing system is typically governed by field permits and national environmental legislation rather than a single global MARPOL standard. The applicable discharge limit and monitoring requirements depend on the operating location and the permit conditions. Bilge water from the machinery space is separately governed by MARPOL Annex I and MEPC.107(49).
What treatment stages does produced water go through on an FPSO?
Produced water typically passes through bulk separation (three-phase separator or FWKO), hydrocyclone de-oiling, gas flotation (IGF or DGF) and, where required, media or walnut shell filtration before reaching the oil-in-water analyser. The specific configuration depends on the field, crude type, water cut and required discharge quality.
Why can’t a standard 15ppm bilge monitor be used for produced water discharge?
A standard 15ppm bilge alarm is designed and type-approved for oily water separator discharge from a vessel’s machinery space. Produced water from FPSO topsides processing has a more complex and variable composition including gas, solids, chemicals and variable crude types that can produce unreliable readings in a standard bilge monitor. A specialist produced water analyser is required.
What is the difference between SMART PFM 107 and OCD Xtra for FPSO produced water?
SMART PFM 107 is an MEPC.107(49)-approved monitor using optical microscopy to differentiate oil, gas bubbles and solids particularly well suited where gas interference is a risk. OCD Xtra measures oil across 0–200ppm and can be calibrated on up to six oil types, making it suited to applications where crude composition varies or where a broader measurement range is required.
When should Rivertrace be involved in the FPSO produced water monitoring specification?
As early as possible ideally at concept or FEED stage, before procurement and detailed engineering. Early involvement allows Rivertrace to confirm the regulatory basis, advise on equipment selection, define sample conditioning requirements and prepare the documentation needed for procurement approval and commissioning.
